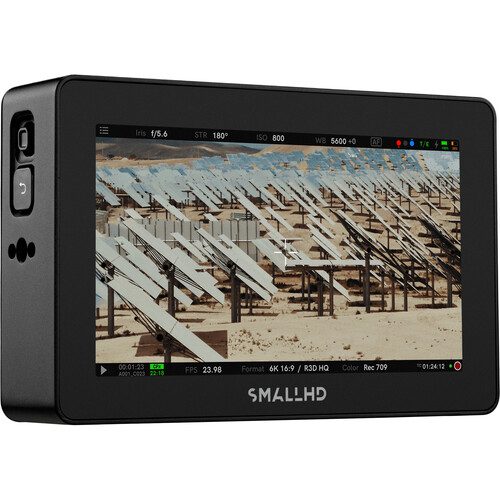

This monitor supports HDMI and 3G-SDI input/output, including one HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. It also supports HDMI-to-SDI and SDI-to-HDMI cross conversion, making it highly adaptable for both mirrorless and cinema camera workflows.

Running on SmallHD’s PageOS 5, the CINE 5 gives users access to a robust suite of tools including waveform, false color, pixel zoom, focus assist, and more. It features an intuitive touchscreen interface, with additional tactile controls including a side joystick and rear function button for fast menu navigation—even when gloves are on.

Designed for integration into advanced camera setups, the CINE 5 includes a 5-pin USB port for optional RED camera control and powers via a 2-pin LEMO-style input.

Key Features

• 5″ touchscreen display with 1920 x 1080 resolution and 2000 cd/m² brightness
• 10-bit 4:2:2 Rec. 709 and DCI-P3 color processing
• Full-size HDMI input/output and 3G-SDI input/output with cross conversion
• Powered via 2-pin power input
• Optional RED camera control via 5-pin USB
• Four 1/4″-20 mounting threads (top, left, right, back)

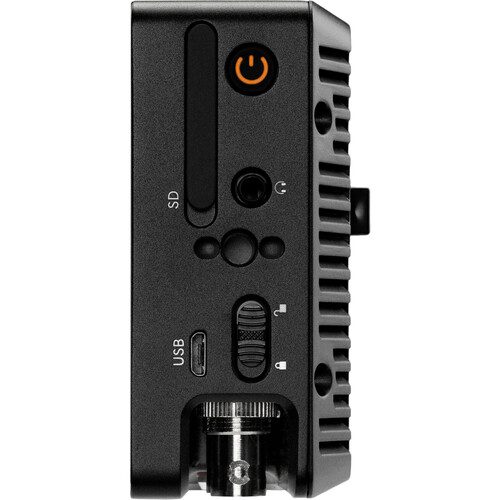

• Integrated joystick and rear button for tactile menu navigation
• Compact, lightweight, and daylight-viewable design

RED Camera Control Capabilities

(when paired with supported control module)

• Run/Stop
• Menu navigation
• Exposure, shutter, and color controls
• Video format and playback functions

Display & Monitoring Tools (via PageOS 5)

• Pixel zoom (1.1x to 8x), with swipe and pinch-to-zoom
• Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
• Image flip/rotation (auto/manual)
• Color focus assist & peaking
• False color (customizable, spectrum, ARRI-style)
• Dual zebra pattern controls
• Waveform, RGB parade, vectorscope, histogram (Luma/RGB)
• Custom LUTs: load via SD card for look or calibration
• Image overlay with opacity/blink settings
• Image capture with gallery
• Up to 8-channel audio metering via HDMI/SDI
