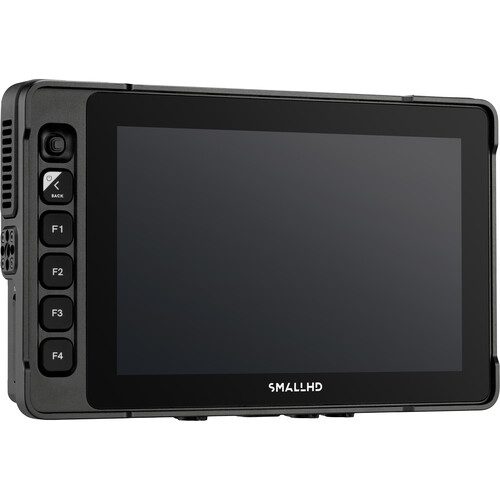

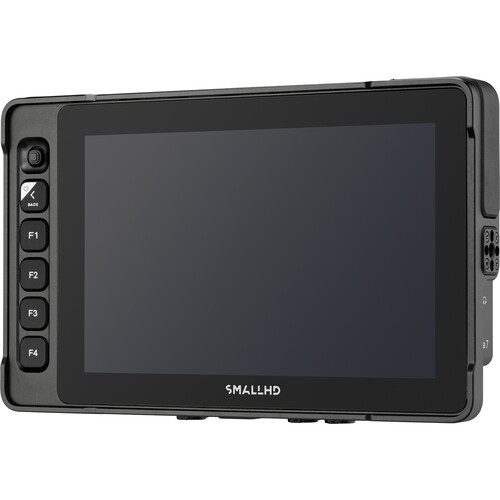

SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor
The SmallHD ULTRA 7 is a rugged, ultra-bright 7″ on-camera monitor designed for high-end productions and demanding environments. Featuring a 1920 x 1200 touchscreen display with 2300 cd/m² brightness, it offers full daylight visibility and 10-bit 4:2:2 Rec. 709 color rendering for accurate on-set monitoring.
Built with professional workflows in mind, the ULTRA 7 supports up to 4K input and output via HDMI and 6G-SDI. It also offers advanced camera control support for ARRI, RED, and Sony VENICE cameras through dedicated 5-pin USB and Ethernet ports. Onboard tactile buttons provide responsive physical control, while the intuitive PageOS 5 interface delivers powerful tools such as EL Zone Exposure Assist, waveform monitoring, false color, and custom LUT support via SD card or USB.

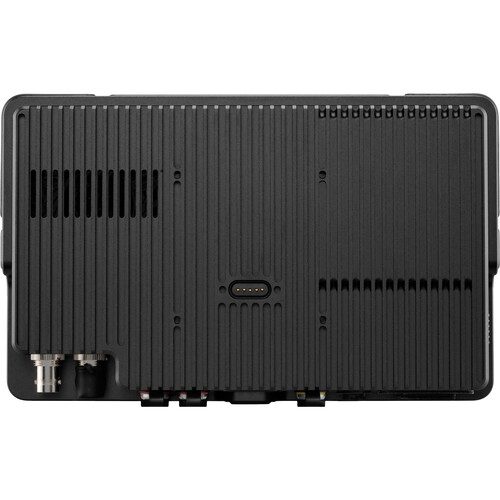

Constructed from durable aluminum, the monitor is IP53-rated for dust and water resistance. It mounts easily using four 1/4″-20 threads and powers via 2-pin LEMO input or optional Gold/V-mount battery plates.
Key Features
- 7″ 1920 x 1200 touchscreen LCD with 2300 cd/m² brightness
- 10-bit 4:2:2 color with DCI-P3 gamut
- HDMI and 6G-SDI input/output with cross-conversion
- PageOS 5 with advanced tools and LUT support
- Tactile button interface and pinch-to-zoom
- Optional camera control via USB (RED) or Ethernet (ARRI, Sony VENICE)
- Aluminum chassis with IP53 weather resistance
- Multiple power options and four 1/4″-20 mounting points
