SmallHD ULTRA 5 Bright Touchscreen Monitor

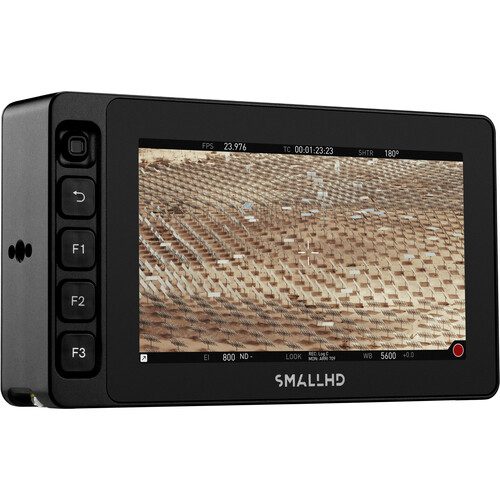

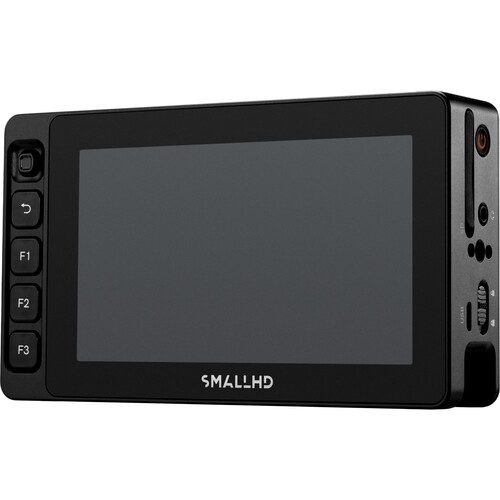

The SmallHD ULTRA 5 is a compact, high-brightness monitor designed for demanding production environments. Its 5″ touchscreen LCD features a Full HD 1920 x 1080 resolution with a peak brightness of 3000 cd/m², ensuring clear visibility even in direct sunlight. With 10-bit 4:2:2 Rec. 709 color and DCI-P3 gamut coverage, the ULTRA 5 is ideal for accurate image assessment, focus pulling, and professional monitoring on set or in the field.

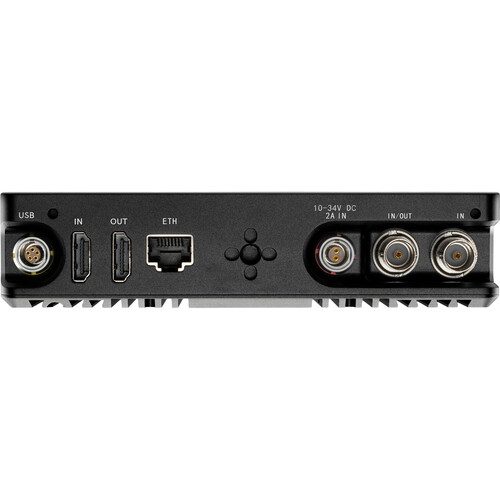

Engineered for flexibility, the ULTRA 5 offers HDMI and 3G-SDI input/output, camera control support, and tactile physical buttons for operation in cold or glove-wearing conditions. A 5-pin USB port enables RED camera control, while an Ethernet port supports ARRI and Sony VENICE control (camera control licenses sold separately). The system runs on PageOS 5, SmallHD’s advanced monitoring platform, which includes waveform, false color, EL Zone exposure tools, LUT support, Teradek RT overlays, and more—all accessible via an intuitive interface.
Built from durable aluminum and equipped with four 1/4″-20 mounting threads, the ULTRA 5 integrates seamlessly into compact rigs, handheld setups, or gimbals. It powers via a 2-pin LEMO input and supports external accessories like SD card LUT loading and audio monitoring.
Highlights
- 5″ 1920 x 1080 touchscreen LCD with 3000 cd/m² brightness
- 10-bit 4:2:2 Rec. 709 and DCI-P3 color processing
- HDMI and 3G-SDI input/output with cross-conversion
- PageOS 5 interface with EL Zone, false color, waveform, LUTs, and more
- Camera control support for RED, ARRI, and Sony VENICE (via optional licenses)
- Four 1/4″-20 mounting points for flexible rigging
- Durable aluminum chassis with physical controls for glove-friendly use
- Power via 2-pin LEMO; SD and USB ports for LUTs and image capture
